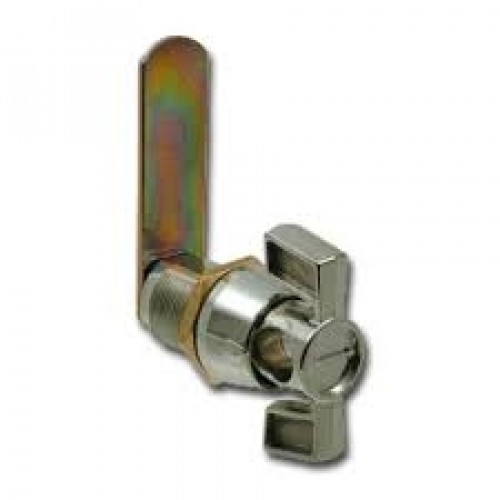

4413 Latch Lock




  • These latch locks are made out of alloy metal with Chrome plated, Nickel Plated, Brass Plated, Satin Nickeld or Black Finished.

  • The latches come with a special hole which can be locked by any padlock with shackle diameter from minimum 5mm to maximum 7mm.

  • Housing diameter 19mm threaded M19 x 1.0 with 2 flat, with mounting nut.

  • With effective standard length (see below table).

  • Fixing hole size 19.1mm x 16.6mm.

  • For 90 degree RH or LH turn.

  • With lipped/overlay standard cam 19mm(W) x 34mm(L).

  • With 8m x 8mm cam hole, cam fixed with end screw.


4413 - Series Latch Lock


  • Latch hole diameter 7.5mm

  • Recommended shackle diameter within minimum 5mm to maximum 7mm



Stock No. Latch Hole Dia. Housing Length Terminal
4413 7.5mm 20mm End Screw
