• 787 Series

787 Series

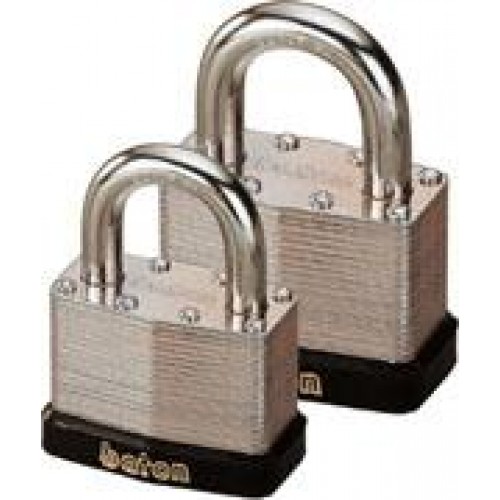

Laminated Steel Padlocks


  • Body is constructed of galvanized steel plates, with 8 rivets for security.

  • Triple plated hardened steel shackle.

  • Double ball bearing locking protection.

  • "Yale" style 5 mushroom pin keyway (787).

  • Supplied with 1 (BKA) or 2 (CKD) keys.

  • Locks available keyed-alike (BKA) or keyed-different (CKD).



Stock No. Pins Case Width Shackle Dia Shackle Clearance
787D-300 4 30mm 5.2mm 18mm
787D-400 5 40mm 6.3mm 21mm
787D-500 5 50mm 8.7mm 25mm
787D-640 5 64mm 11mm 30mm
787D-40L 5 40mm 6.3mm 50mm
