• 690 Series

690 Series

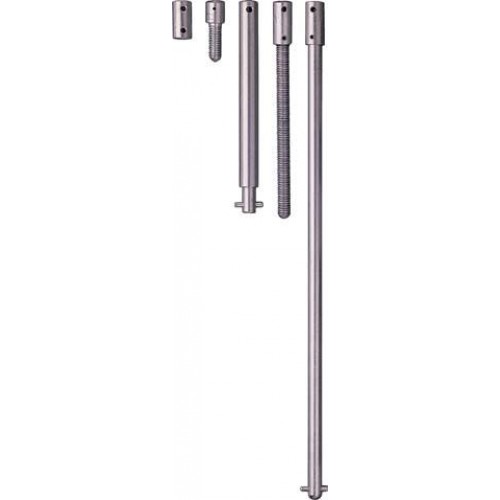

T-Studs


  • Composed of plated steel.

  • Available in "T"-type or threaded.

  • The metric measured studs can accomidate Baton's 740 & 7000 Series cam locks or any other similar lock with a metric measured (M7 x 1.0) tail piece.

  • The english measured studs can accomidate Baton's 6000 Series cam locks or any other similar lock with an english measured (9/32" W28) tail piece.

  • Various lengths are available


Stock No. Type Interior Threading Diameter Effective Length
690-TC T-Stud (CD dryer) 9/32" W28 7/16"
690-TB T-Stud (Maytag) 9/32" W28 7/16" 4-3/4"
690-TN T-Stud (Maytag DG23) 9/32" W28 7/16" 11-13/32"
690-TP T-Stud (IPSO) 9/32" W28
690-T2 Coupler M7 x 1.0 7/16" 7/8"
690-T4 Threaded Stud M7 x 1.0 5/16" x W18 2-1/2"
690-T6 Threaded Stud M7 x 1.0 5/16" x W18 1-7/16"
690-T8 Threaded Stud M7 x 1.0 5/16" x W18 5-1/16"
690-TX Threaded Stud M7 x 1.0 5/16" x W18 Specify
